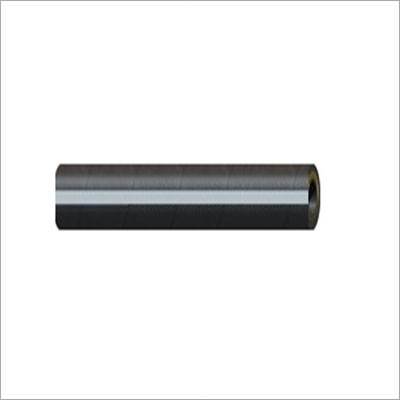

Synthetic Rubber HosexSynthetic Rubber HoseProduct Code : SRH-20
Brand Name : NAEOwing to our huge industry experience, we have marked an affluent position by offering a wide range of Synthetic Rubber Hose. Offered hose is manufactured under the vigilance of our deft professionals making use of modern technique and premium quality synthetic rubber. This hose is well suited for conveying gas, water and other liquid pressure. Moreover, this Synthetic Rubber Hose can be easily availed in different lengths and diameter at very nominal prices.
Features:
High strength
Leakage proof
Ruggedness
Heat resistance
Send Enquiry..
Product Specification:
For use with hydraulic machines of low or medium pressure. Made of oil resistant rubber reinforced by synthetic fiber. Recommended oil temperature is from- 300c up to 880C.
IMPA Code
Nominal Size mm
Actual Size mm
Braid
Weight Per Mtr Grm.
Mtr Per Coil
I.D
O.D
Working Pressure 15 kgf/cm2
350401
6
6.3
12.3
1B
130
100
350402
9
9.5
15.9
1B
175
100
350403
12
12.7
19.7
1B
250
100
350404
19
19
30
1B
585
100
350405
25
25.4
37
1B
785
100
350406
32
31.8
44.8
2B
1075
100
350407
38
38.1
51.1
2B
1230
100
350408
50
50.8
65.4
2B
1720
50
Working Pressure 35 kgf/cm2
350411
6
6.3
13
1B
140
100
350412
9
9.5
16.5
1B
195
100
350413
12
12.7
20.3
1B
275
100
350414
19
19
32.6
2B
755
100
350415
25
25.4
39.2
2B
960
100
350416
32
31.8
46
2B
1100
20
350417
38
38.1
52.3
2B
1320
20
350417
50
50.8
66.2
2B
1905
20
Send Enquiry..
-

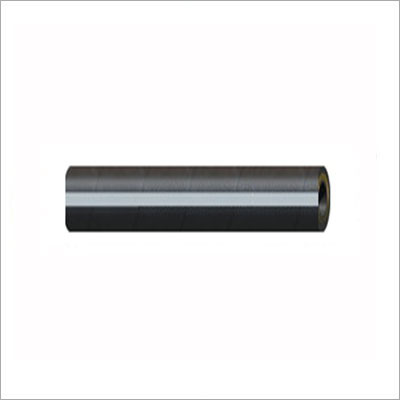

Rubber Oil Delivery HosexRubber Oil Delivery HoseProduct Code : RODH-22
Brand Name : NAEWe feel proud to introduce ourselves as the significant manufacturer, exporter and supplier of an excellent quality Rubber Oil Delivery Hose. Our provided hose is efficiently manufactured under the guidance of our deft professionals by utilizing optimal quality natural and synthetic rubber in order to meet defined industry norms of quality. This hose is especially designed for the suction of oil, gas, fuel, and others from tanks and mines. Apart from that, we offer this Rubber Oil Delivery Hose in numerous lengths and thicknesses at minimal prices.
Features:
Oil resistance
Leakage proof
Highly flexible
High tensile strength
Send Enquiry..
Rubber Oil Delivery Hose Reinforced with synthetic Textile Cord :
Used for delivery service of fuel oils, gasoline, diesel oils and other petroleum oils. Made of oil resistant rubber reinforced with strong synthetic textile cords.
IMPA Code
Noinal Size I.D. mm
Approx O.D. mm
Weight Per Mtr Kgs
Pressire Rating
350431
19
28
0.4
10 kgf/cm2
350432
25
35
0.6
10 kgf/cm2
350433
32
42
0.8
10 kgf/cm2
350434
38
49
0.9
10 kgf/cm2
350435
45
56
1.2
10 kgf/cm2
350436
50
62
1.9
10 kgf/cm2
Send Enquiry..
-

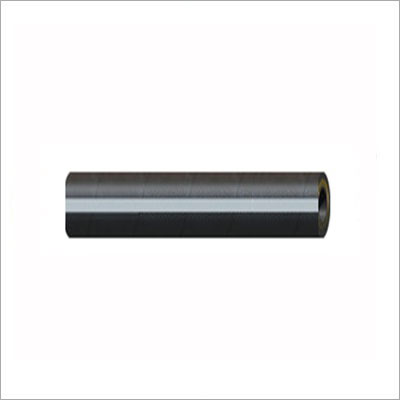

Rubber Oil Suction HosexRubber Oil Suction HoseProduct Code : ROSH-23
Brand Name : NAEWe are identified as one of the most reliable manufacturers, exporters and suppliers of a qualitative range of Rubber Oil Suction Hose. In order to manufacture this hose in sync with set industry terms, our experts making use of optimum quality rubber and upgraded techniques. Offered hose is ideal for heavy duty suction and delivery of chemicals, petrochemicals, oil, waste water and other liquids. Furthermore, our clients can avail this Rubber Oil Suction Hose in diverse lengths, colors and thicknesses at reasonable rates.
Features:
Withstand high pressure
Leakage proof
Oil resistance
Easy to handle
Send Enquiry..
Specifications:
A high-quality hose well balanced in construction for its purpose. A heavy gauge tube of heat resistant compounds covered by cotton ducks and insulated to withstand extreme heat, etc. Made in 20 mtrs in length.
IMPA Code
Nominal I.D.mm
Approx O.D. mm
Weight Per Mtr kgs
Working Pressure
350271
19
30
0.6
5 kgf/cm2
350272
25
37
0.7
5 kgf/cm2
350273
32
44
0.9
5 kgf/cm2
350274
38
51
1.3
5 kgf/cm2
350275
45
59
1.5
5 kgf/cm2
350276
50
66
1.8
5 kgf/cm2
350277
55
74
2.2
5 kgf/cm2
350278
65
80
2.6
5 kgf/cm2
350279
75
98
3.8
5 kgf/cm2
Send Enquiry..
-

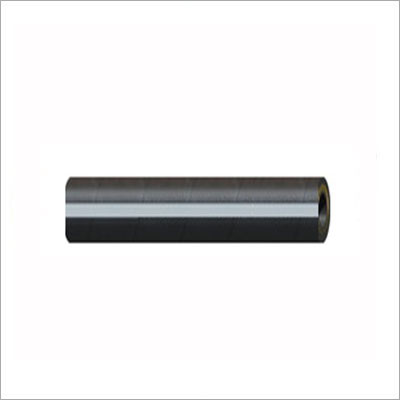

Molded Rubber Air HosexMolded Rubber Air HoseProduct Code : MRAH-24
Brand Name : NAEOur organization is a trustworthy entity in this domain, engaged in offering a large array of Molded Rubber Air Hose. This hose is efficiently manufactured with the aid of advanced technique and by utilizing superior quality rubber under the guidance of our deft experts. It is well suited for transferring oil, water, mineral acids, inorganic salt solution and others. In addition to this, our clients can avail this Molded Rubber Air Hose in different thicknesses and lengths at marginal prices.
Features:
Withstand high temperature
Oil resistance
High tensile strength
Easy to use
Send Enquiry..
Specifications:
Black corrugated or smooth surface molded and braided construction, for general service.A high-quality hose well balanced in construction for its purpose. A heavy gauge tube of heat resistant compounds covered by cotton ducks and insulated to withstand extreme heat, etc. Made in 20 mtrs in length.
IMPA Code
Nominal Size mm
Actual Size mm
Braid
Working Pressure kgf/cm2
Mtr Per Coil
I.D.
O.D.
350101
6
6.3
14.5
2B
15
100
350102
9
9.5
18
2B
15
100
350103
12
12.7
24
2B
10
100
350104
15
15.9
27.5
2B
10
100
350105
19
19
30.5
2B
10
100
350106
25
25.4
38
2B
10
100
350107
32
31.8
47
3B
7
100
350108
38
38.1
53.5
3B
7
100
350109
50
50.8
71
3B
7
50
Send Enquiry..
-

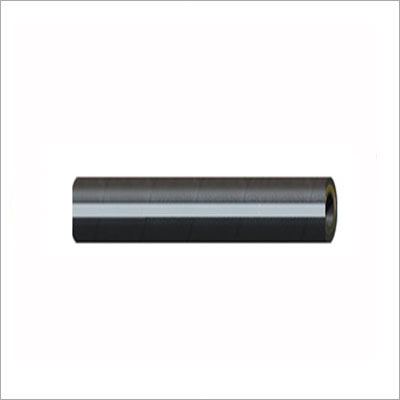

Braided Rubber HosexBraided Rubber HoseProduct Code : BRH-25
Brand Name : NAESince 1994, we are engrossed in manufacturing, exporting and supplying a qualitative assortment of Braided Rubber Hose. Offered range of hose is manufactured with the help of cutting-edge methodology and using optimal quality rubber under the strict guidance of our diligent professionals. Ideal for supplying liquids and fluids under certain pressure, this hose is widely used in chemical, construction, electricity and other industries. Further, our clients can avail this Braided Rubber Hose in various lengths and diameter at marginal rates.
Features:
Excellent flexibility
Resistant to high temperature
High tensile strength
Easy to handle
Send Enquiry..
Specifications:
For acetylene welding equipment. Lightweight, extremely flexible, and practically non-kinkable. Furnished in red colour to be distinguished as an acetylene line.
IMPA Code
Nominal Size mm
Actual Size mm
Braid
working Pressure kgf/cm2
Mtr Per Coil
I. D.
O.D.
350121
6
6.3
13.5
1B
3
200
350122
8
7.9
15
1B
3
200
350123
9
9.5
16.5
1B
3
200
Send Enquiry..
