Vacuum Port Products

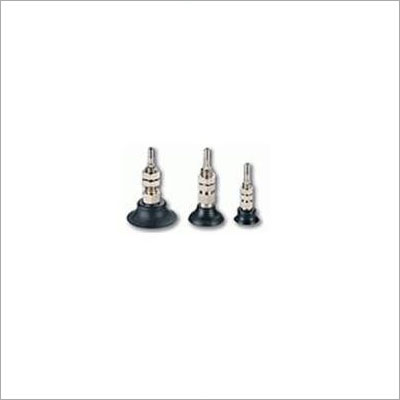

  • Fixed Vacuum Port On Top
    Fixed Vacuum Port On Top
    x
    Fixed Vacuum Port On Top
    Fixed Vacuum Port On TopProduct Code : 38
    Brand Name : Flat Type Suction

    Product Specification:

    Flat Type Suction Cup
    Vacuum Pad Material: Nitril RubberVacuum Valve (-80.8Kpa(-600mmHg))

    Code

    Vaccum Pad Outer dia (mm)

    Area of Suction Cup (Cm2)

    WT Lift Capacity (Kg)

    NAE/05N

    5 mm

    0.196

    0.150

    NAE/10N

    10 mm

    0.785

    0.620

    NAE/15N

    15 mm

    1.766

    1.390

    NAE/20N

    20 mm

    3.141

    2.480

    NAE/25N

    25 mm

    4.906

    3.870

    NAE/30N

    30 mm

    7.068

    5.580

    NAE/35N

    35 mm

    9.616

    7.590

    NAE/40N

    40 mm

    12.56

    9.920

    NAE/50N

    40 mm

    19.63

    15.500

    Send Enquiry..

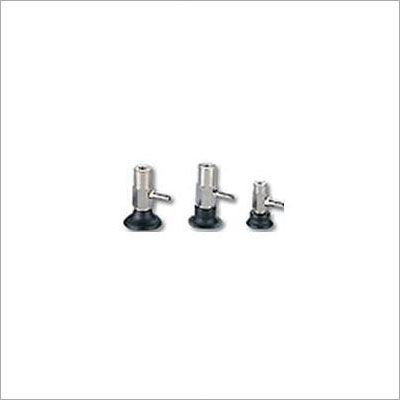

  • Fixed Vacuumm Port On Side
    Fixed Vacuumm Port On Side
    x
    Fixed Vacuumm Port On Side
    Fixed Vacuumm Port On SideProduct Code : 38
    Brand Name : Flat Type Suction

    Product Specification:

    Flat Type Suction Cup
    Vacuum Pad Material: Nitril Rubber Vacuum Valve (-80.8Kpa(-600mmHg))

    Code

    Vaccum Pad Outer dia (mm)

    Area of Suction Cup (Cm2)

    WT Lift Capacity (Kg)

    NBE/05N

    5 mm

    0.196

    0.150

    NBE/10N

    10 mm

    0.785

    0.620

    NBE/15N

    15 mm

    1.766

    1.390

    NBE/20N

    20 mm

    3.141

    2.480

    NBE/25N

    25 mm

    4.906

    3.870

    NBE/30N

    30 mm

    7.068

    5.580

    NBE/35N

    35 mm

    9.616

    7.590

    NBE/40N

    40 mm

    12.56

    9.920

    NBE/50N

    40 mm

    19.63

    15.500

    Send Enquiry..

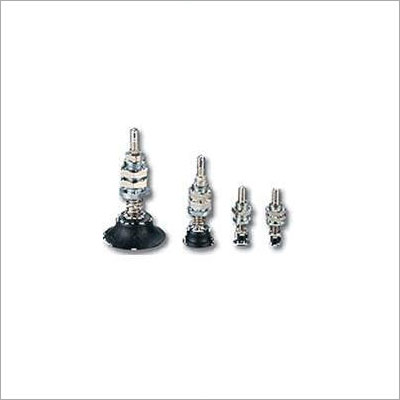

  • Vacuum Port On Top With Spring
    Vacuum Port On Top With Spring
    x
    Vacuum Port On Top With Spring
    Vacuum Port On Top With SpringProduct Code : 38
    Brand Name : Flat Type Suction

    Product Specification:

    Flat Type Suction Cup
    Vacuum Pad Material: Nitril Rubber Vacuum Valve (-80.8Kpa(-600mmHg))

    Code

    Vaccum Pad Outer dia (mm)

    Area of Suction Cup (Cm2)

    WT Lift Capacity (Kg)

    NCE/05N

    5 mm

    0.196

    0.150

    NCE/10N

    10 mm

    0.785

    0.620

    NCE/15N

    15 mm

    1.766

    1.390

    NCE/20N

    20 mm

    3.141

    2.480

    NCE/25N

    25 mm

    4.906

    3.870

    NCE/30N

    30 mm

    7.068

    5.580

    NCE/35N

    35 mm

    9.616

    7.590

    NCE/40N

    40 mm

    12.56

    9.920

    NCE/50N

    40 mm

    19.63

    15.500

    Send Enquiry..

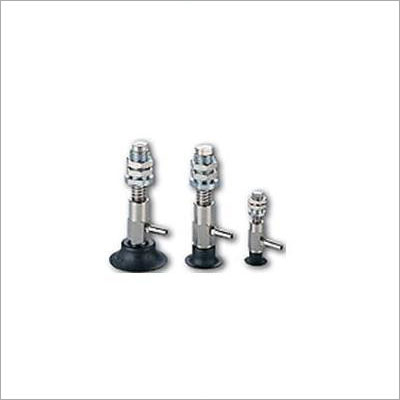

  • Vacuum Port On Side With Spring
    Vacuum Port On Side With Spring
    x
    Vacuum Port On Side With Spring
    Vacuum Port On Side With SpringProduct Code : 38
    Brand Name : Flat Type Suction

    Product Specification:

    Flat Type Suction Cup
    Vacuum Pad Material: Nitril Rubber Vacuum Valve (-80.8Kpa(-600mmHg))

    Code

    Vaccum Pad Outer dia (mm)

    Area of Suction Cup (Cm2)

    WT Lift Capacity (Kg)

    NDE/05N

    5 mm

    0.196

    0.150

    NDE/10N

    10 mm

    0.785

    0.620

    NDE/15N

    15 mm

    1.766

    1.390

    NDE/20N

    20 mm

    3.141

    2.480

    NDE/25N

    25 mm

    4.906

    3.870

    NDE/30N

    30 mm

    7.068

    5.580

    NDE/35N

    35 mm

    9.616

    7.590

    NDE/40N

    40 mm

    12.56

    9.920

    NDE/50N

    40 mm

    19.63

    15.500

    Send Enquiry..
